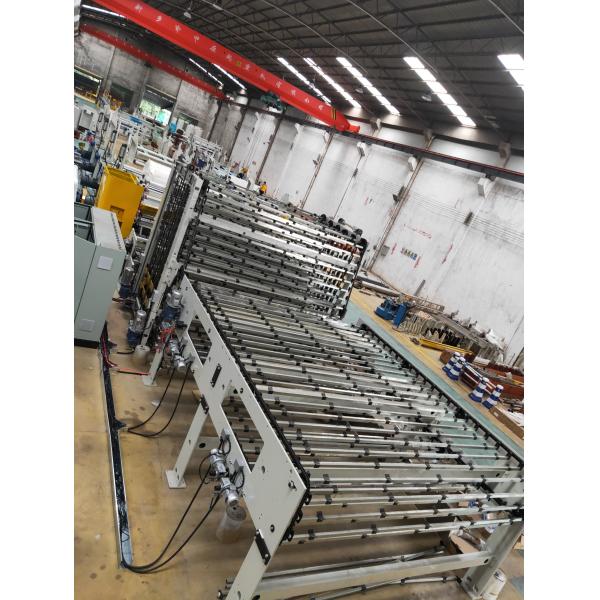

High Speed Kitchen Paper Towel Making Machine Complete Production Line
1) It adopts full Siemens servo technology, touch screen and Siemens SIMOTION system.Parameters are set conveniently and quickly ,Machine Automatically completes produce from the automatic feeding,arranging ,filling plastic films ,inserting angle and sealing .Running in a high speed,no pollution.
2)This machine is designed to have various specifications format changeover between toilet roll and kitchen towel , it thanks to the advanced double layer arrangement system.
3) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
4)The machine is designed to have quick,flexible format changeover.the change time less than 30 minutes.
4) This machine is used plastic films to pack,it save the cost of plastic.
5) Five-channels motorized belt feeding conveyor with high technology controlled by Siemens servo motor
| NO | Name | Technical |
| 1 | Max Width | 2900mm |
| 1.1 | Change Roll by Roll Type | Running continuously non-stop |
| 1.2 | Cutting paper type | Cut paper inside the machine with even edge |
| | | |
| 2 | Finished products’ diameter | ¢70-150mm |
| 2.1 | winding density of roll | Control by touch screen |
| 2.2 | Adjust for roll diameter | Control by motor |
| 2.3 | Adjust for roll length | Control by touch screen ,tolerance ±1 sheet |
| 2.4 | Diameter of paper core | 35mm--50mm,(Other specification, please specify) |
| 2.5 | Driving | Independent motor |
| | | |
| 3 | Perforation Pitch(to be appoint) | |
| 3.1 | Perforation line ratio | 4:1,(Other specification, please specify) |
| 3.2 | Perforation tolerance | ±1mm |
| 3.3 | Perforation size | 80-280mm (Other specification, please specify) |
| 3.4 | Automatic induction protection system for wrapping paper | Yes |
| 3.5 | Driving | Independent motor |
- Stable production speed: 130 cuts/ min.
- Adopt to independent servo motor drive and PLC Siemens control system.
- High precision positioning,with length tolerance ±1mm.
- Model clamping unit, reliable and easy to assemble.
- Reliable and stable servo drive high precision trimming system
-
| NO | Name | Technical |
| 1 | Max Width | 2900mm |
| 1.1 | Max diameter of jumbo roll | ¢2000mm |
| | | |
| 2 | Unwinding belt | 2 belts for each unwinding |
| 2.1 | Size of belt | 250mm |
| 2.2 | Driving | Independent motor |
| | | |
| 3 | Unwinding structure | Wall-parel |
| 3.1 | Adjust base paper alignment | Control by motor |
| 3.2 | Paper rip detection system | Yes |
| | | |
| 4 | Brake type | Disk |
| 4.1 | Quantity of brakes for each unwinding | 1 set |
| 4.2 | Driving | Pneumatic |
| | | |
| 5 | Quantity of rollers for each unwinding | 2 pcs |
